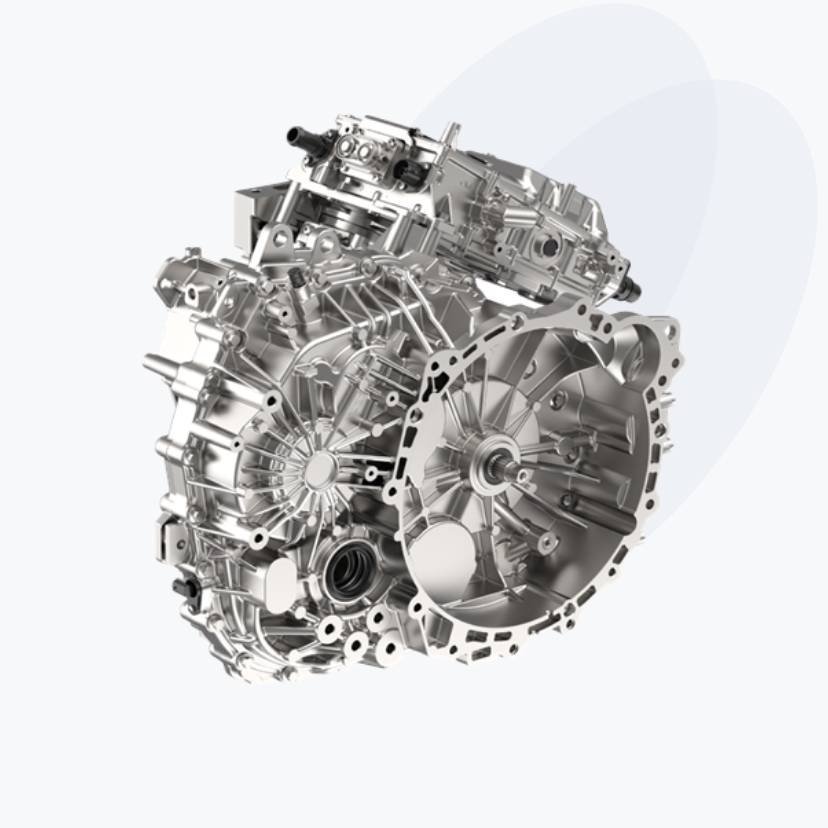

200-1-01
2DHT70
Single-motor 2-speed DHT
The assembly features a highly integrated design, a single-motor two-speed architecture, and a lightweight construction;
When paired with the P4 electric bridge, it enables multiple two- and four-wheel-drive modes—including two pure-electric modes, two direct-drive modes, series hybrid, and combined hybrid—thus optimizing the vehicle’s fuel efficiency across all operating conditions. The system incorporates a high-efficiency flat-wire motor, a high-efficiency controller, and an intelligent control strategy that precisely identifies the motor’s efficient operating range;
It employs a high-efficiency flat-wire motor, a high-efficiency controller, and an intelligent control strategy that precisely identifies the motor’s high-efficiency operating range. Combined with high-precision gears featuring low slip rates and high-efficiency bearings, this system achieves exceptionally high transmission efficiency.
Core Configuration
Parameters
70kW
Peak Power
160N·m
Peak Torque
14000rpm
Maximum Speed
2
Gear

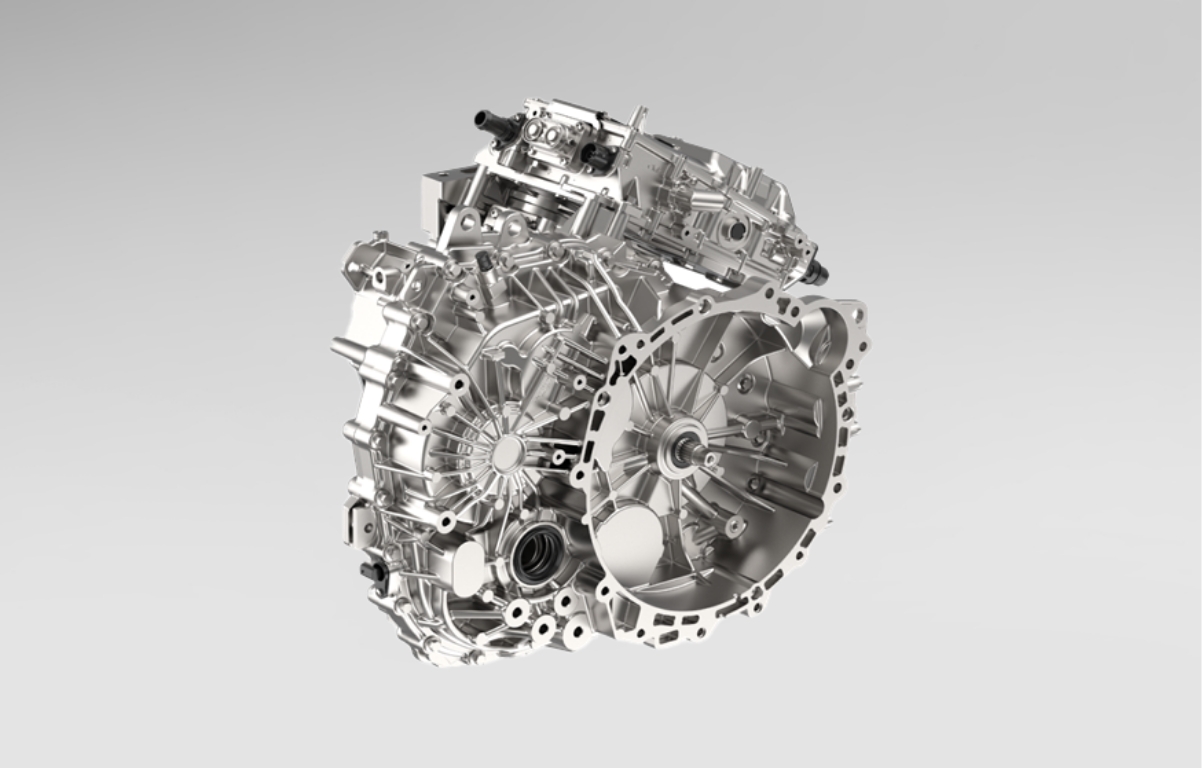

200-1-02
