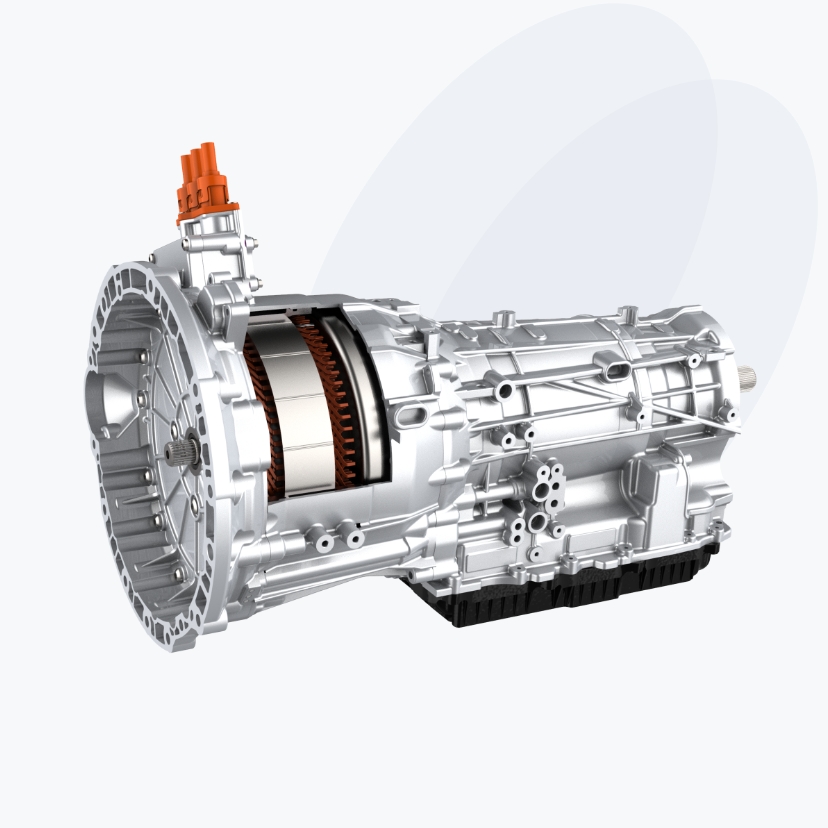

200-1-01
9HAT longitudinally 9-speed AT transmission
Integrated high-performance P2 motor, Peak performance 130kW/495N·m;
The vehicle can achieve multiple operating modes, including pure oil, pure electric, hybrid, and power generation;
Motor and torque converter integrated design achieves outstanding power performance.
Core Configuration

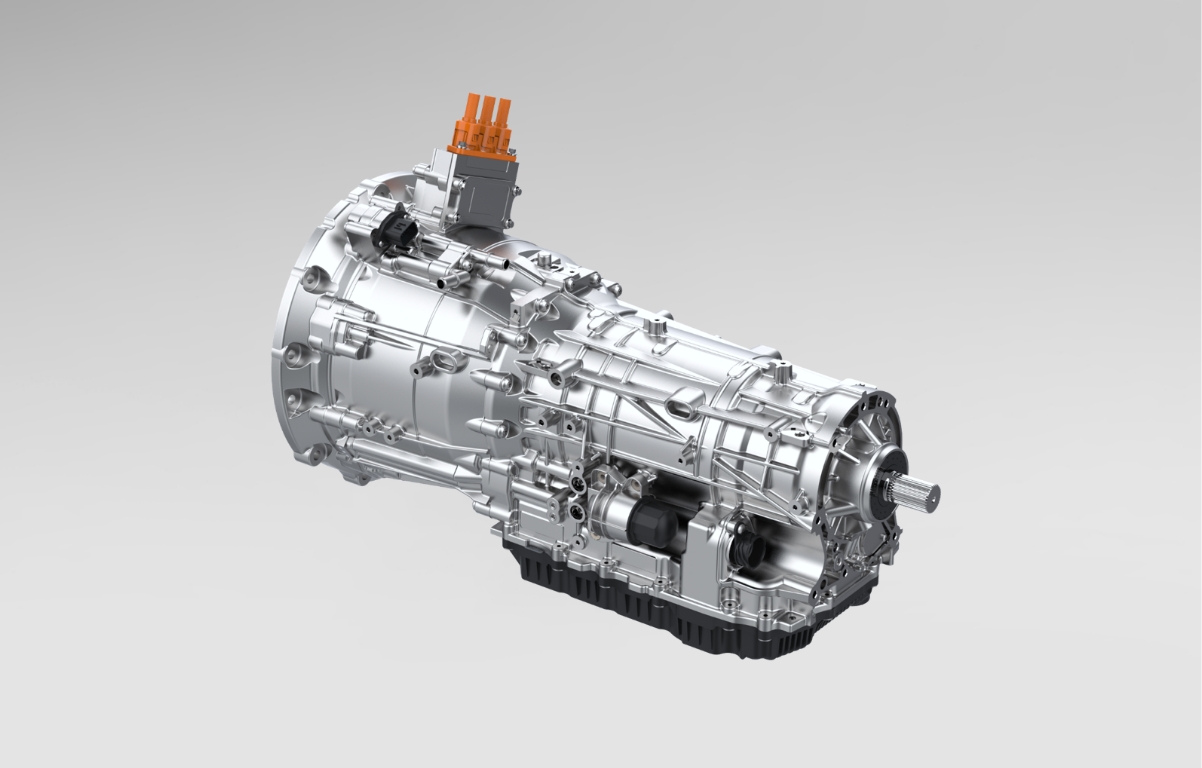

200-1-02
Parameters
850N·m
Torque capacity
9+R
Gear
720.8
Axial size(mm)
129kg
Weight(with oil)
8.843
Ratio range
130kW/495N·m
P2 Motor peak performance
Electro-hydraulic control system
Actuation system
