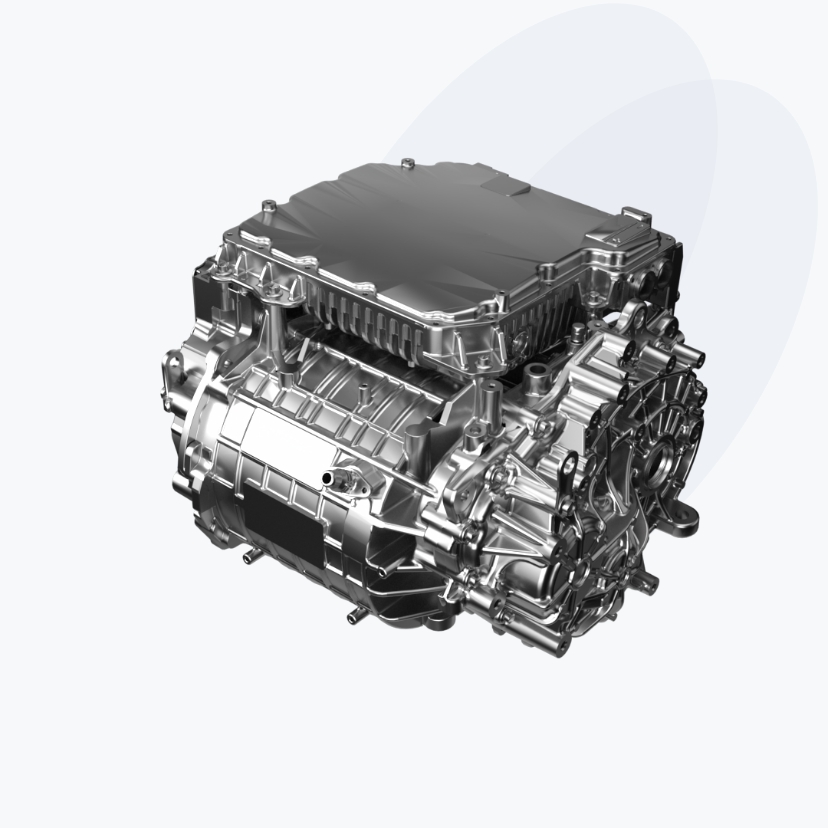

200-1-01
150kW Three-in-one Electric Drive Assembly
3-in-1 electric drive assembly compatible with differential lock and half-shaft disconnection device
High Integrated: Compatible with differential lock and half-shaft disconnection functions;
Lightweight with a high torque-to-weight ratio;
Excellent NVH Performance: Low-harmonic winding structure;
High Efficiency: Hairpin flat-wire winding, high slot fill rate, high-efficiency bearings, reduced oil volume, with a maximum system efficiency of 94%.
Core Configuration

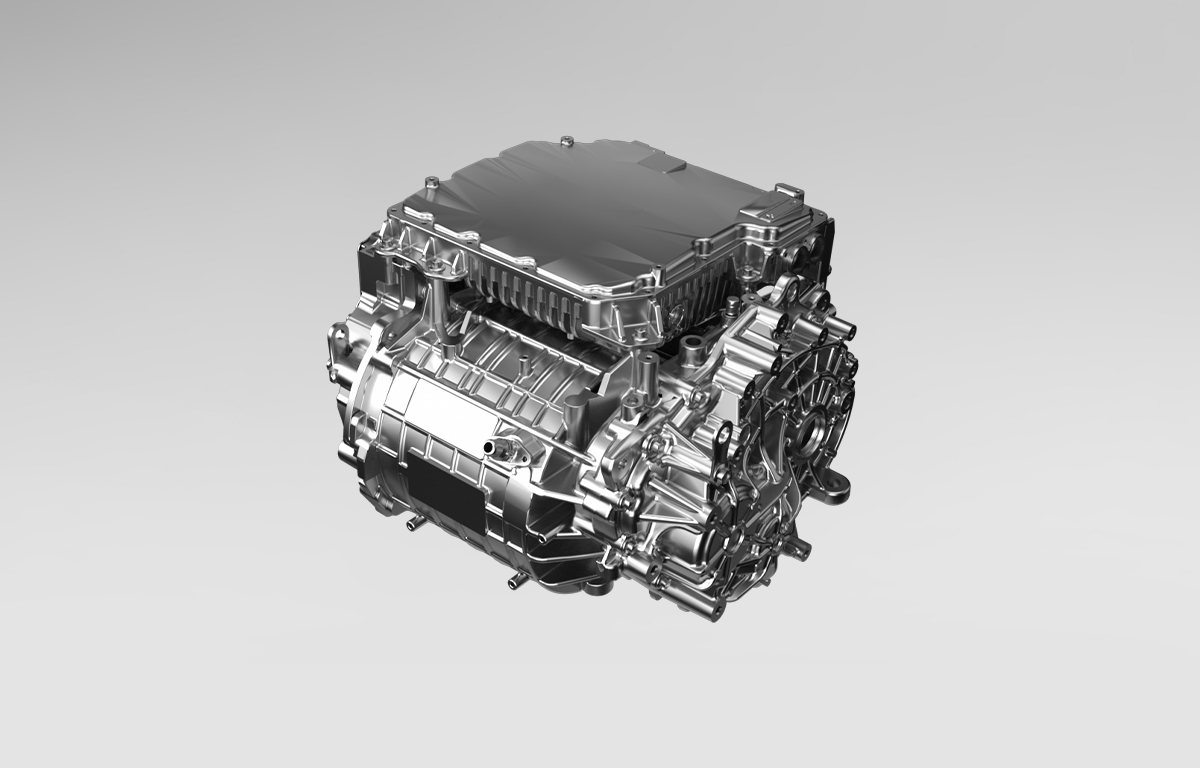

200-1-02
Parameters
150kW
Peak Power
16500rpm
Max Speed
3356N·m
Peak Torque
1
Gear
487*457*371
Dimension X*Y*Z(mm)
79kg
Weight
