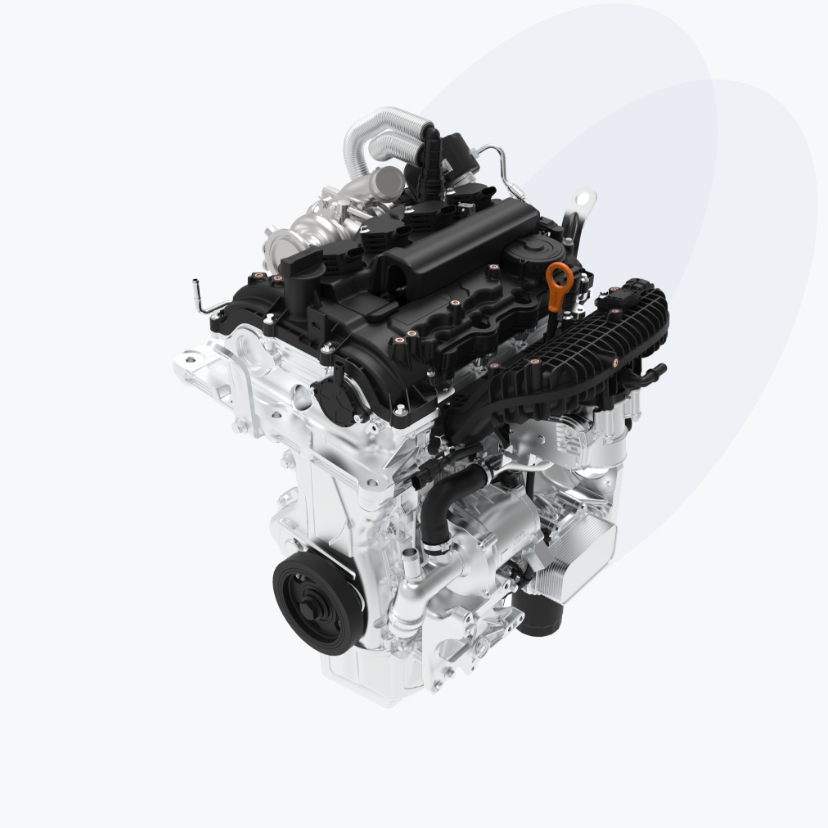

The 4B15M is a 1.5‑liter turbocharged gasoline engine specifically designed for overseas hybrid applications. Paired with a DHT, it is suitable for sedans, SUVs, and MPVs； It delivers strong power and low fuel consumption.
Core Parameters
Maximum power
113kW
Maximum torque
243N·m
Core Technologies

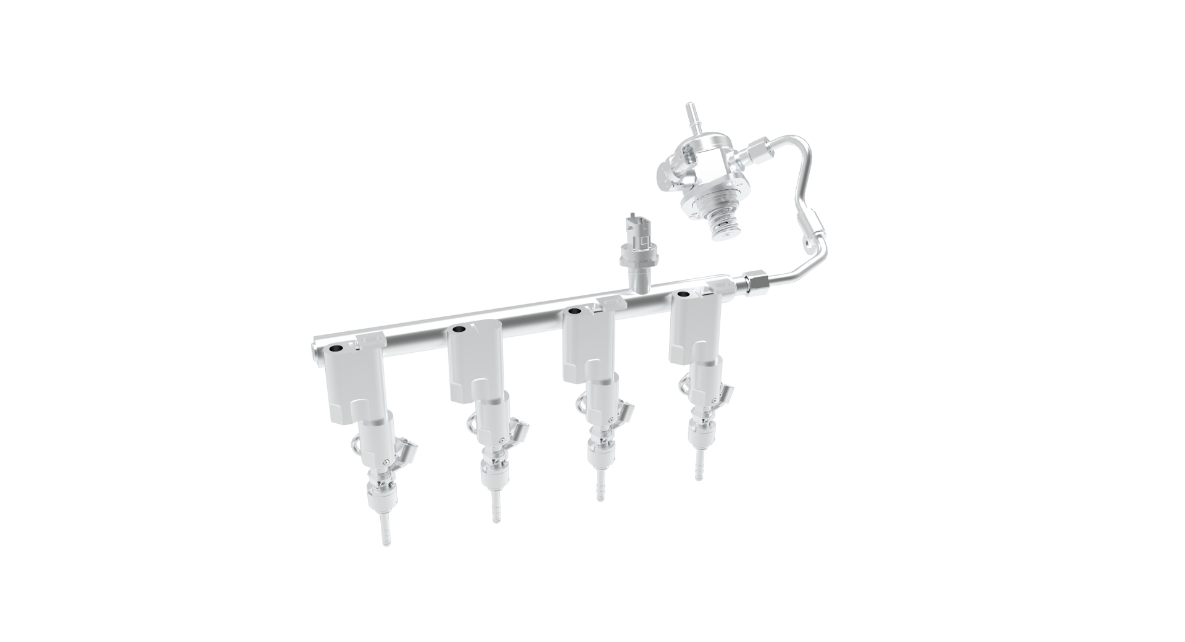

350-bar Central Direct Injection
The center-mounted injector reduces fuel wall-wetting and avoids oil dilution. The 350bar fuel injection system effectively reduces fuel spray diameter and accelerates fuel atomization. It enables triple injection, thereby reducing PN (particulate number) emissions.

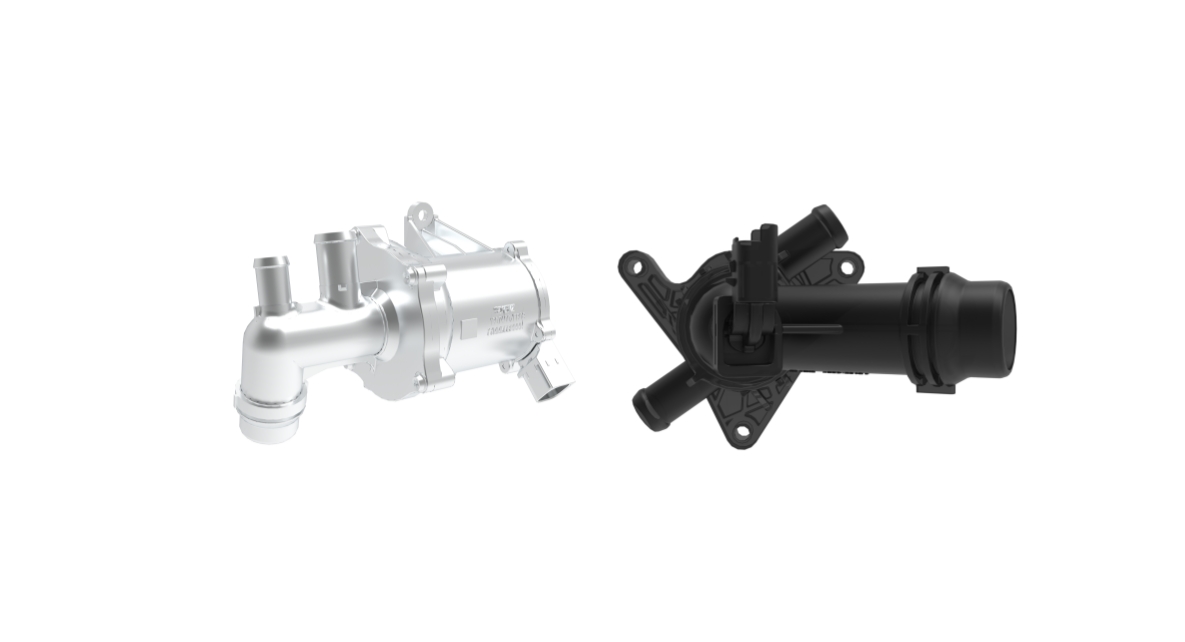

Electric Water Pump + Electric Thermostat
To meet cooling demands, a 400‑W electric water pump provides on‑demand cooling, reducing energy consumption. Paired with an electric thermostat for fast response and precise coolant temperature control, it enables full‑map water temperature management, offering a more flexible thermal‑management strategy. This effectively speeds up engine warm‑up and reduces heat‑transfer losses. Under low‑load conditions with minimal flow requirements, the pump can run at reduced speed to save energy. Under full‑load conditions, it provides stronger cooling capacity, accommodating special operating scenarios such as vehicle thermal stress, hill‑climbing, and sudden stops.

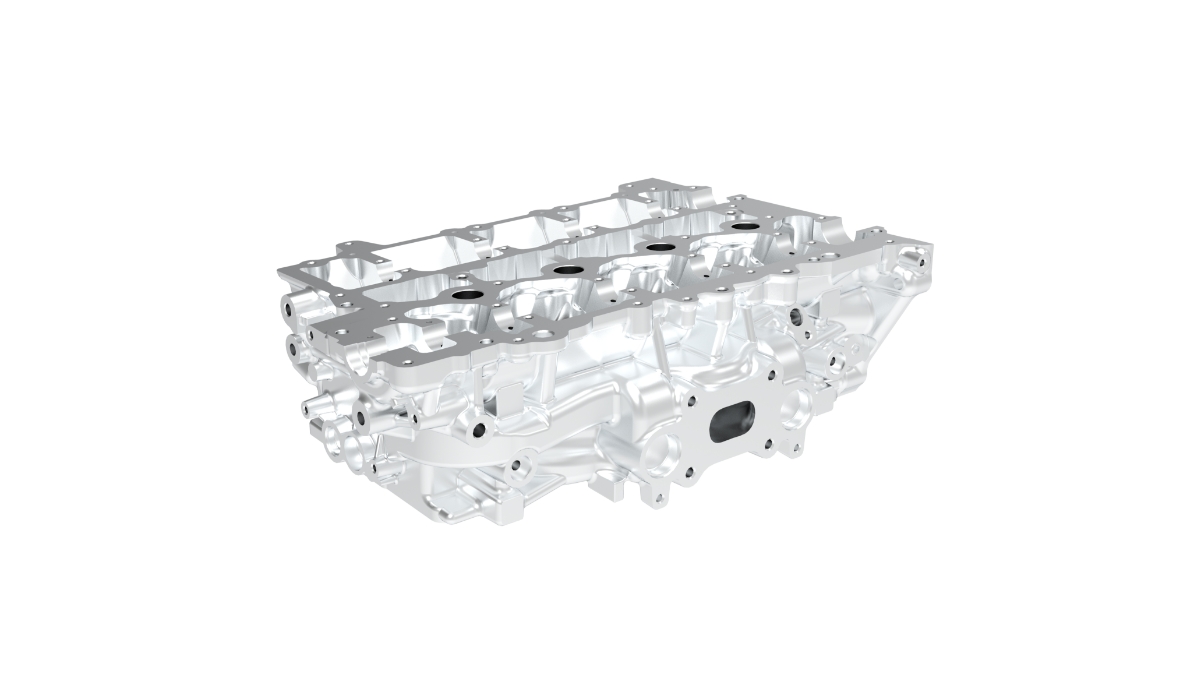

Cylinder‑Head‑Integrated Exhaust Manifold
This design reduces part count, making the overall engine structure more compact and lighter. During cold starts, it accelerates coolant warm‑up, improving engine pre‑heating performance, reducing exhaust‑energy loss, and shortening the time to reach optimal operating temperature. This effectively lowers the engine’s fuel‑consumption rate and emissions.

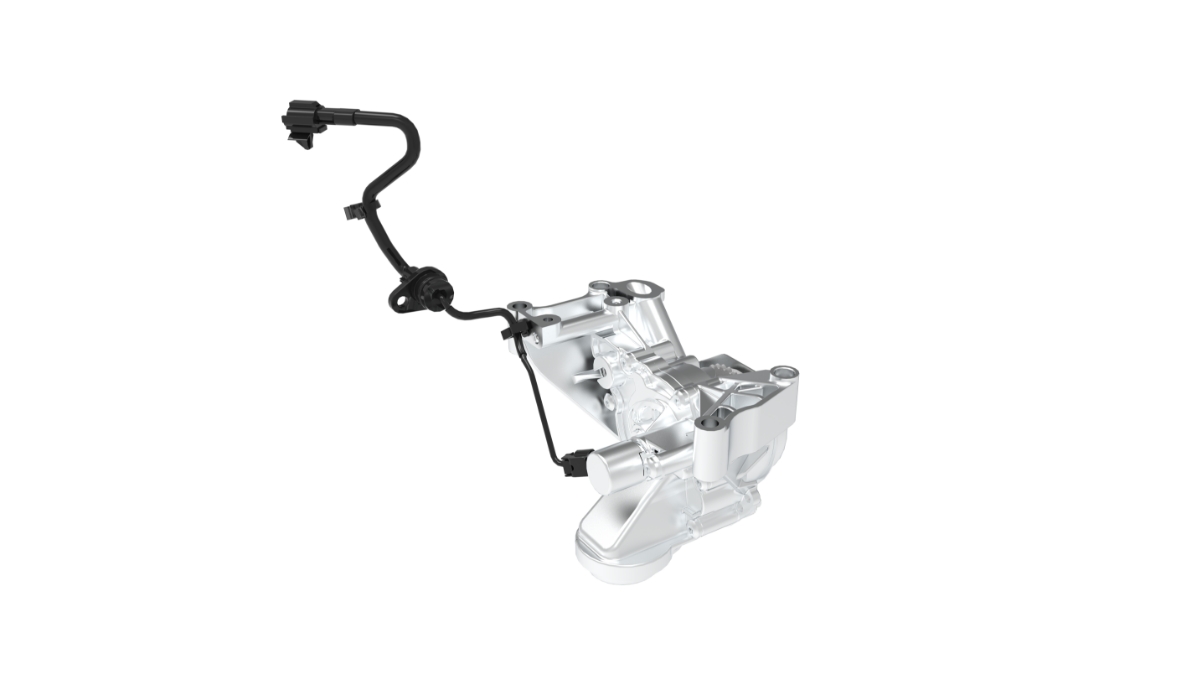

Variable Displacement Oil Pump
It can adjust oil pressure based on engine speed and load, reducing fuel consumption by 0.5% to 2%. Under high‑speed conditions, fuel consumption can be reduced by up to 3%.
