200-1-01

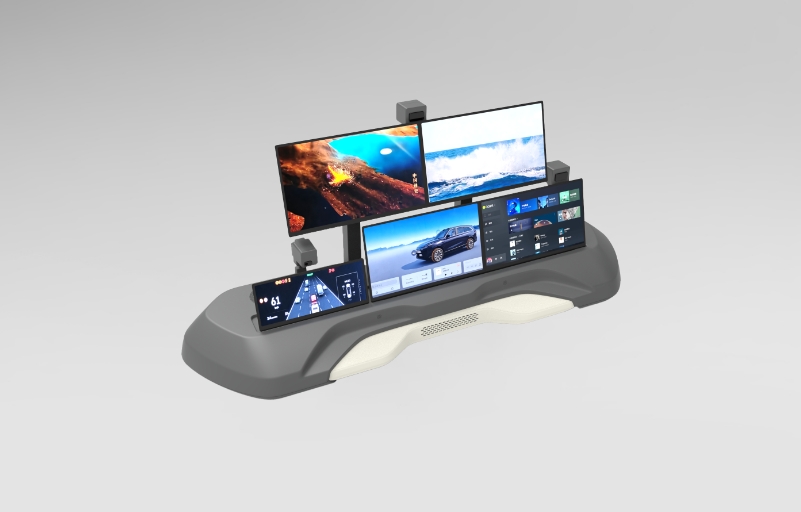

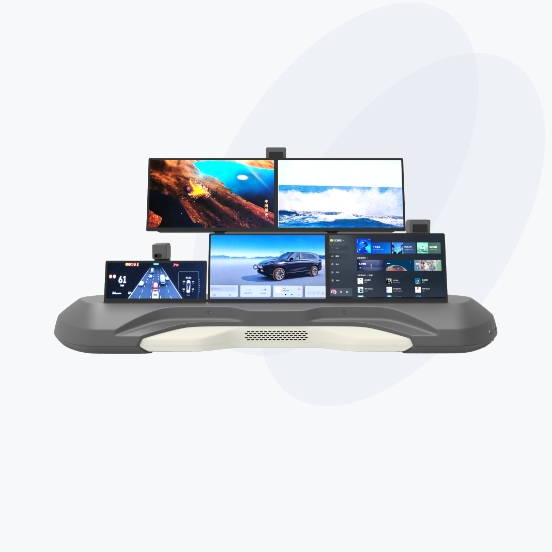

IN 9.1 Cockpit Domain Controller
IN9.1 is based on the 4th-generation platform SA8295P;
It is integrated multi-screen interaction, 3D Vehicle model linkage, car-phone connection, Intelligent driving interaction, Intelligent ecological APP and etc;
There is one Type-A port supporting USB audio and video playback, two Type-C interfaces which can be connected to Switch game, mobile phones and VR(Virtual Reality) glasses;
It can implement integrated Cluster, IVI(In-Vehicle Infotainment), entertainment displays, APA(Automated Parking Assist) and etc. Besides the basic infotainment function, Face recognition and gesture recognition is also integrated.
Product Introduction
Qualcomm 4th-generation Snapdragon digital cockpit platform.
Multiple operating systems (QNX/Android) on single chip.
Up to 11 displays, 10 cameras, 2 analog mic, 6 digital mic, 12 APA/UPA radars.
5*100M/1*1000M Ethernet, 4*CAN(FD), 2*LIN.
USB 2.0/3.0, WiFi 6E, BT 5.3.
HiCar/ICCOA/Carplay/Android Auto.
Core Configuration
200-1-02
Parameters
5nm
Process
3100 GFLOPS
GPU
30/50 TOPS
NPU
24G + 256G
Memory
Up to 11
Display
220/256K DMIPS
CPU
1000 Base-T1 + 5*100 Base-T1
Ethernet
Main BT: BT5.2、Vice BT: BT5.2 & BLE、WIFI6 & WIFI6E
BT-WIFI
