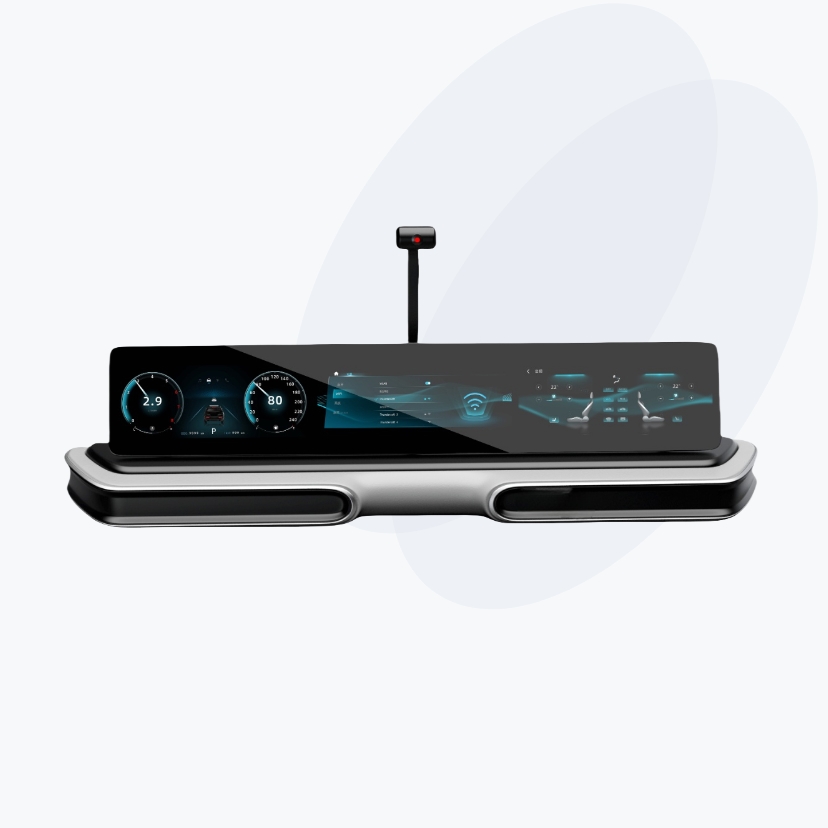

200-1-01
IN9.0 Cockpit Domain Controller
IN9.0 is based on the 3rd-generation platform SA8155P;
The instrument cluster supports display mode switching, 3D animation effects, high quality sound effects and other infotainment functions.
Product Introduction
Qualcomm 3rd-generation Snapdragon digital cockpit platform.
Multiple operating systems (QNX/Android) on single chip.
Up to 5 displays, 9 cameras, 2 analog mic, 6 digital mic.
3*100M/1*1000M Ethernet, 4*CAN(FD), 2*LIN.
Core Configuration

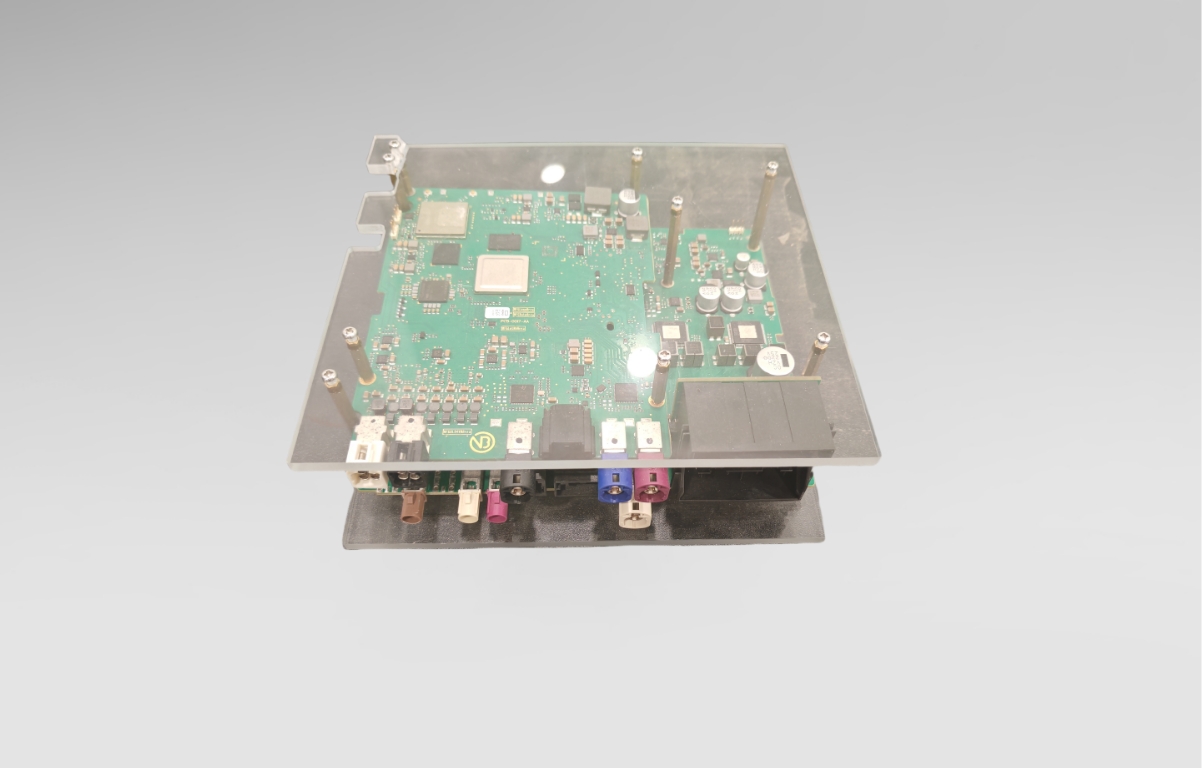

200-1-02
Parameters
7nm
Process
105K DMIPS
CPU
1100 GFLOPS
GPU
8 TOPS
NPU
Up to 5
Display
12/16G + 128/256G
Memory
BT5.0 & BLE、WIFI5
BT-WIFI
1000 Base-T1 + 3*100 Base-T1
Ethernet
