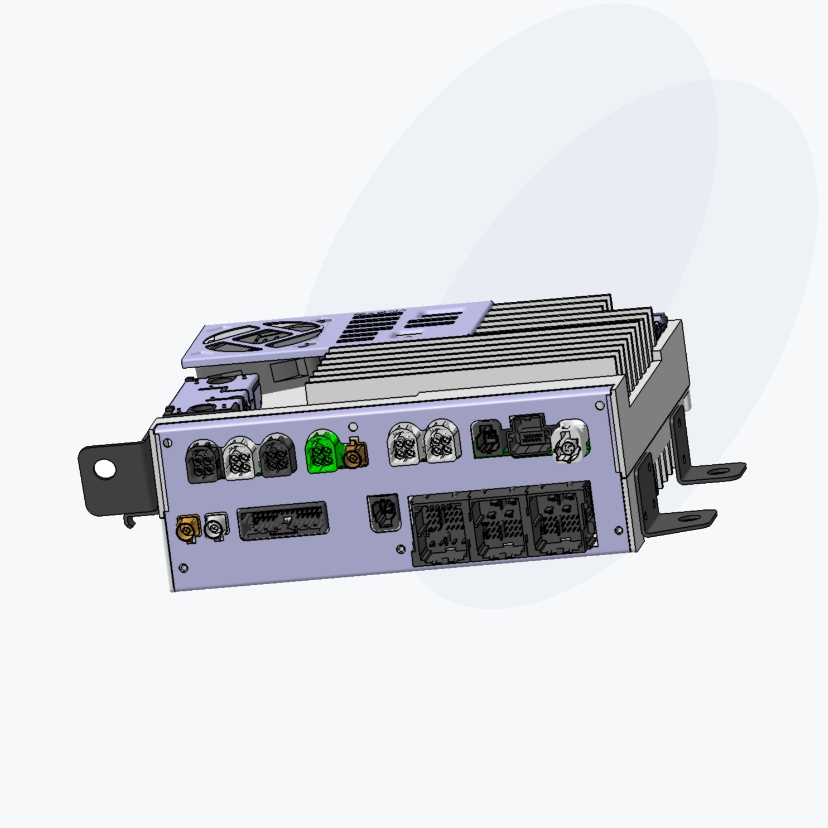

200-1-01
IN8.0 Cockpit Domain Controller
It is integrated the TBOX(Telematic Box) and Multi-Screen interaction、3D Vehicle model linkage、Intelligent driving interaction and ecological APP;
There are Type-A and Type-C ports, which are supporting USB audio, video and switch game projection;
Linux(Cluster) + Linux(TBOX) + Android(IVI) are running on single chip, which has integrated multiple displays, multiple cameras, Ecall(Emergency Call), multi-form desktop, 3D Vehicle model interaction, online navigation, voice recognition and etc.
Product Introduction
MTK8676 all-new digital cockpit platform.
Multiple operating systems (Linux/Linux/Android) on single chip.
Up to 4 displays, 11 cameras, 4 analog mic, 12 digital mic.
4*100M/1*1000M Ethernet, 3*CAN(FD), 1*LIN.
USB 2.0/3.0, WiFi 6E, BT 5.3
HiCar/ICCOA/Carplay/Android Auto
Core Configuration

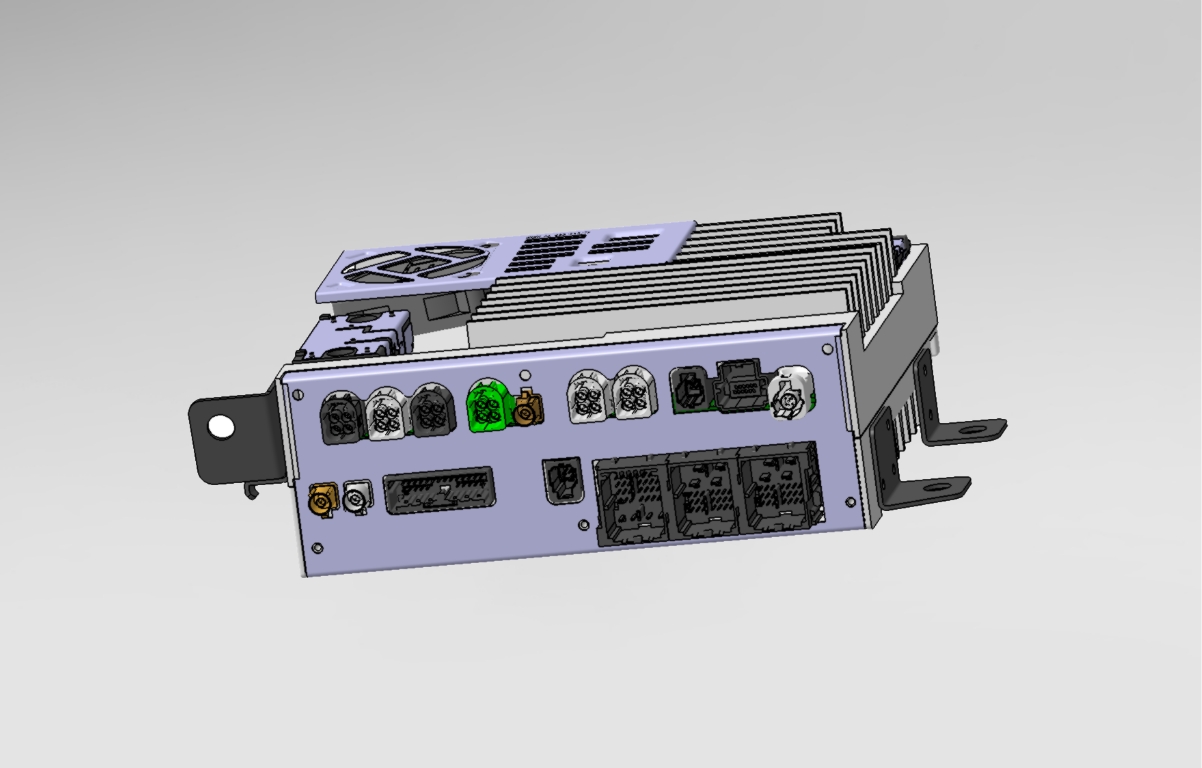

200-1-02
Parameters
4nm
Process
170K DMIPS
CPU
1800 GFLOPS
GPU
20 TOPS
NPU
Up to 4
Display
16/24G + 128/256G
Memory
1*1000 Base-T1+ 4*100 Base-T1
Ethernet
5G NR: SA/NSA、4G:TDD/FDD LTE
Network
GPS/Beidou/Glonass/Galileo
GNSS
Main BT: BT5.3、Vice BT: BT5.2 & BLE、WIFI6 & WIFI6E
BT-WIFI
